| Place of Origin: | Dongguan, China |
| Brand Name: | sheerfond |
| Model Number: | XF-MD001 |
| Minimum Order Quantity: | To be confirmed per project |
|---|---|
| Price: | USD1.80-2.60 per piece (element price, to be confirmed per project) |
| Packaging Details: | Neutral or custom retail packaging, subject to confirmed order |
| Delivery Time: | To be confirmed per project |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be confirmed per project |
Custom Shape · Size · Voltage · Connector · Clear Zone · Packaging
This is a graphene heating pad that installs behind the mirror glass. It warms the mirror from the back so the central zone stays clear while you use the bathroom, and it is built to the shape, size and voltage your mirror project actually needs.
It is not a coating, a spray or a fan. It is a flexible layered film that is peeled and applied to the back of the mirror, hidden from the front, and wired to the power arrangement you specify. Because the mirror itself varies from project to project, almost every dimension here is a starting point rather than a fixed number.
The reference sizes below come from supplied samples. Final specifications, power, temperature and certification requirements are subject to approved sample and confirmed order.
A common misunderstanding is that a defogger makes the entire mirror surface fog-free. The wording on our own drawings is deliberately narrower than that. The drawing states “FOG CLEARS IN THE HEATING ZONE … surrounding areas may still mist.”
So the honest description is this: the heating layer keeps a defined area clear, and that area is something you can specify. Areas outside the heated zone behave as they always did. If you are comparing suppliers, this is worth asking about directly — a supplier who promises the whole surface will stay clear is making a claim the physics does not support.
We also describe the layer as moisture-resistant, which is exactly what the drawings say. It is not a waterproof claim and it is not an ingress-protection rating. Those are different things and we do not conflate them.

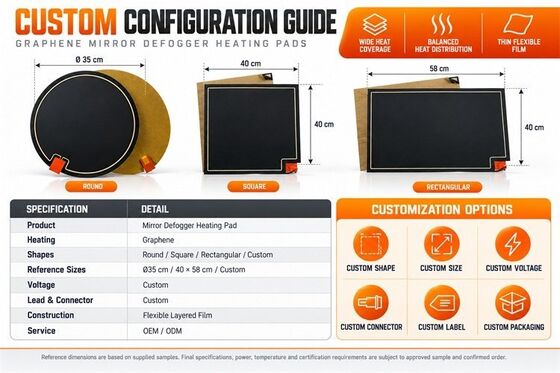

| Specification | Detail |
|---|---|
| Product | Mirror Defogger Heating Pad |
| Heating | Graphene |
| Shapes | Round / Square / Rectangular / Custom |
| Reference Sizes | Ø 35 cm · 40 cm · 58 × 40 cm · Custom |
| Voltage | Custom |
| Lead & Connector | Custom |
| Construction | Flexible Layered Film |
| Service | OEM / ODM |
Reference dimensions are based on supplied samples. Final specifications, power, temperature and certification requirements are subject to approved sample and confirmed order.
Note the two entries marked Custom. Those are not gaps in our documentation — voltage and connector are genuinely project variables. The supply architecture of a bathroom mirror differs greatly between a mirror cabinet with an internal driver and a mirror wired to a separate adapter. Publishing a single voltage figure would be misleading for most buyers, so we define it during sample review instead.

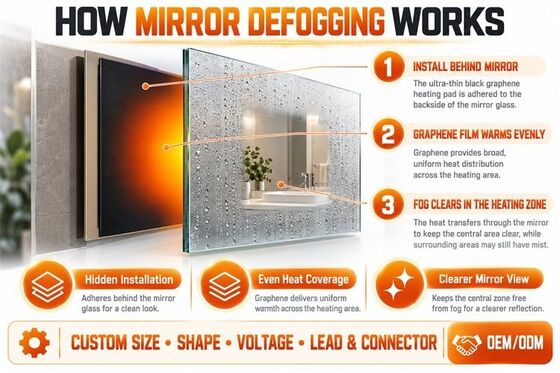

The principle is straightforward, and it is worth stating plainly so you can evaluate the design rather than take it on faith.
That third point is the one worth reading twice. Heat transfer through a mirror is not instantaneous across the whole sheet. The heated zone clears; the rest does not. A supplier who understands this will talk about where the clear zone is placed. That is the question worth asking.

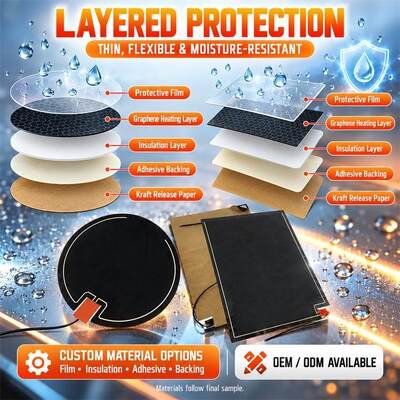

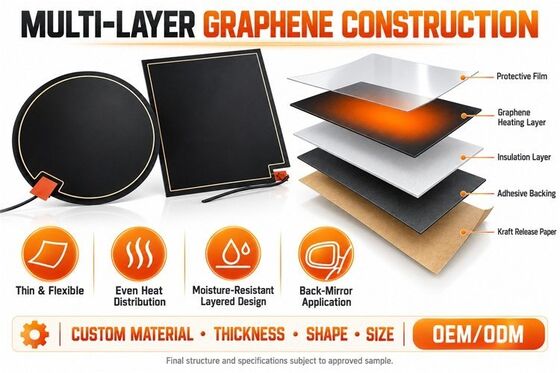

Both the main image and the detail drawing show the same five-layer stack, which is a good sign — the explanation is consistent.
| Layer | Function |
|---|---|
| 1 | Protective Film — outer face, protects the heating layer |
| 2 | Graphene Heating Layer — the active heating element |
| 3 | Insulation Layer — separates the heating layer electrically and thermally |
| 4 | Adhesive Backing — bonds the assembly to the mirror back |
| 5 | Kraft Release Paper — peeled away at installation |
Final structure and specifications subject to approved sample.
Each of these layers is a customisable item too: film, insulation, adhesive and backing can all be adjusted. If your project has a specific humidity profile or a particular mirror substrate, tell us at requirement stage and we will match the build to it rather than force a stock stack onto it.

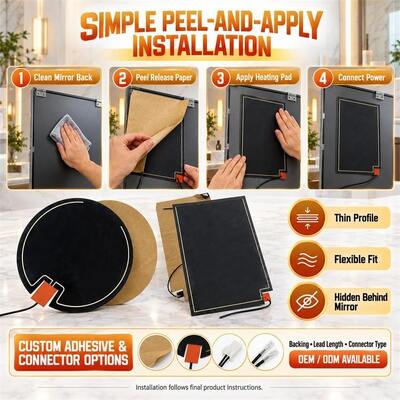

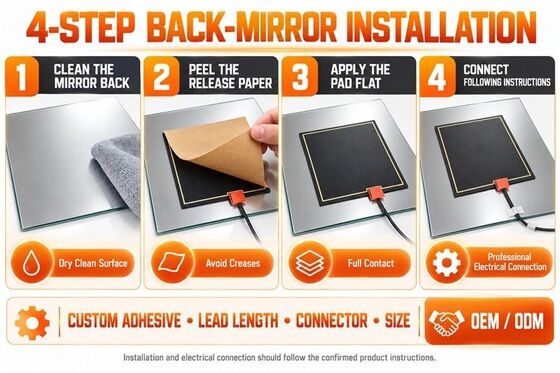

Four steps, and the fourth one deserves emphasis.
| Step | Action |
|---|---|
| 1 | Clean the mirror back — dry, clean surface only |
| 2 | Peel the release paper — avoid creases |
| 3 | Apply the pad flat — full contact across the pad |
| 4 | Connect the power — professional electrical connection following the instructions |
Installation and electrical connection should follow the confirmed product instructions.
Step four says professional electrical connection and that is not boilerplate. This is a mains-adjacent product installed in a wet room. The pad itself is a low-voltage heating layer, but the connection to the supply is an electrical installation task. We would rather state that plainly than imply that a bathroom mains connection is a DIY job.
Adhesive, lead length and connector type are all specified per project, so the installation sheet you receive is the one that matches your order — not a generic diagram.

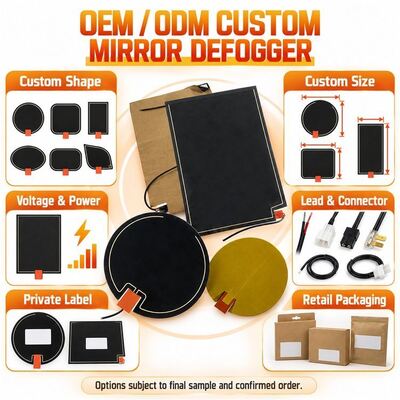

This is where a mirror defogger stops being a catalogue item. Mirrors vary enormously — an illuminated round mirror, a rectangular mirror cabinet and an irregular designer shape do not take the same heating element.
| Option | What Can Be Set |
|---|---|
| Shape | Round, square, rectangular, or a fully custom outline |
| Size | Matched to your mirror, including non-standard formats |
| Voltage & Power | Defined per project against your supply arrangement |
| Lead & Connector | Lead length and connector type specified to your build |
| Clear Zone | The heated area is positioned where you need clarity |
| Materials | Film, insulation, adhesive and backing selected for the application |
| Private Label | Your brand on the product |
| Retail Packaging | Neutral or custom retail packaging |
Options subject to final sample and confirmed order.
The five-step process is the same one we run across our heating products.
| Step | Stage |
|---|---|
| 1 | Share Requirements — shape, size, voltage, power, quantity and application |
| 2 | Confirm Design — 2D/3D drawing and specifications for your approval |
| 3 | Sample Review — you confirm performance, appearance and fit |
| 4 | Production — mass production under strict quality control |
| 5 | Custom Packing — neutral or your own retail packaging |
All configurations subject to approved sample and confirmed order.
Step 2 is where the design gets pinned down. Because voltage, connector and clear-zone placement are project variables, nothing is fixed before you see a drawing. If you have a mirror model number, a drawing, or even a photograph with measurements, that is enough for us to start.
Summarising the six points shown on the product detail page: graphene heating for even warmth across the area rather than a hot spot; a clear mirror zone that keeps the viewing area usable in bathrooms and humid environments; a thin, flexible, ultra-lightweight film that is easy to integrate; moisture-resistant layers built for damp conditions; easy back-mirror installation with reliable adhesion; and OEM/ODM support for custom projects.
Dongguan Sheerfond New Material Co., Ltd. develops and manufactures far-infrared and graphene heating materials, and supplies both graphene and resistance-wire heating solutions. Our low-voltage range covers 3.7 V, 5 V, 12 V, 24 V and 36 V architectures, and we produce against project specifications rather than from a fixed catalogue.
Product heating elements are available at 3.7 V, 5 V, 12 V, 24 V, 36 V and custom specifications. We also undertake custom product development.
Buyers with a specific mirror, a specific supply arrangement, or a private-label programme are welcome to send requirements for a design and sample review.
Send us your mirror dimensions, the shape you need, your supply arrangement, quantity and target market. We will come back with a design proposal and a sample plan.
Price indication: the heating element is quoted at US$1.80–2.60 per piece for a standard element, depending on size and configuration. This is the element priced per piece, not a finished retail product and not the price of a complete mirror. Final pricing follows your confirmed outline, clear zone, voltage, connector and order quantity.
Contact us: Request a quotation →
This product is not a medical device and is not intended to diagnose, treat or cure any condition.
